Welcome to the complete Chain Harrow website - we are confident you will
find the right chain harrow at the right price - all with heavy duty 13mm tines
Choosing the Right Chain Harrow
Trailed Chain Harrows For Sale
Rotary Menage Levellers For Sale
Remember the Chain Harrow Tine Weight
Other suppliers can sell cheaper chain harrows but you will get thinner and/or less tines so you may want to check the weight before you make a decision. The weight of the chain harrow determines the performance, heavier tines will last longer.
All our chain harrows are made in the UK and have 13mm heavy duty tines.

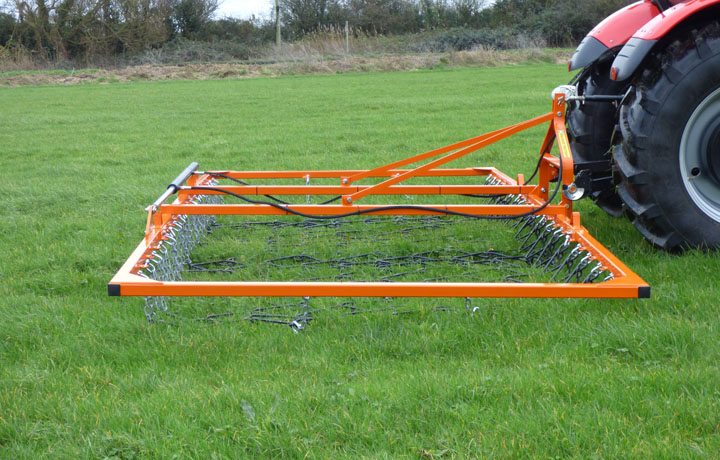

Mounted Chain Harrows For Sale
All our mounted chain harrows are manufactured in the UK using British steel and have heavy duty 13mm tines.
These chain harrows can only be used with tractors with hydraulic 3 point linkage.
We supply our mounted chain harrows in two depths:
- Semi-Professional 4ft Single Depth Chain Harrows
Single depth 4ft mat. This is available in 4ft, 8ft and 12ft. - Professional 8ft Double Depth Chain Harrows
Double depth 8ft deep harrow comprising of 2 x 4ft deep mats. This is available in 4,6 ,8, (reversible) and 10, 12, 14, 16, 18 and 20ft widths.
Semi Professional 4ft Single Depth Mounted Chain Harrow
The Semi Professional 4ft Single Depth Mounted Chain Harrow is purchased with one centre 4ft x 4ft frame complete with A frame and mat.
To make an 8ft you would be supplied with two extra 2ft wings and an extra mat.
To make a 12ft you would have the centre frame, 2 x 4ft wings and 3 x 4ft mats.
You can always increase the width of your mounted chain harrow by simply adding wings and mats. These 8ft and 12ft Semi Professional 4ft Single Depth Mounted Chain Harrows are supplied with easy folding wings for narrow access and transportation. The Semi Professional is recommended for small compact tractors because they are relatively light and easily manoeuvrable.
» Single depth mounted chain harrow
» Hydraulic 3 point linkage
| Semi-Professional 4ft Single Depth Reversable Mounted Chain Harrows | ||
4ft Chain Harrow |
8ft Chain Harrow |
12ft Chain Harrow |
1 x 4ft Centre Frame £428.00 |
1 x 4ft Centre Frame £737.00 |
1 x 4ft Centre Frame £886.00 |
1 x 4ft x 4ft Frame |
Set of 2 x 2ft Wings |
Set of 2 x 4ft Wings |
All prices are subject to VAT.
Professional 8ft (2x4ft) Double Depth Reversable Mounted Chain Harrow
Professional 8ft (2 x 4ft) Double Depth Mounted Chain Harrows come in 4ft, 6ft and 8ft widths and have a reversible A frame allowing passive or aggressive towing options.
These frames are manufactured especially for Paul Helps Chain Harrows with a detachable A frame which enables you to easily tow in the opposite direction without the need to detach the mat from the frame and turn it around manually.
These frames have been manufactured to match our other range of paddock maintenance equipment - www.paddockequipment.co.uk - paddock rollers, paddock toppers, Mitsubishi compact tractors and transport boxes.
» Reversible A frame allows fast passive or aggressive towing options without re-attaching the mat
» With our reversible A frame you can quickly tow in the opposite direction without removing the mat
» Our range of 4ft, 6ft and 8ft wide mounted chain harrows have a quick change reversible A frame
» Mounted chain harrows from Paul Helps, quickly and easily tow in the opposite direction
| Professional 8ft (2x4ft) Double Depth Reversable Mounted Chain Harrows | |||
Width |
One x Reversable Frame |
Reversable Frame |
2 x 4ft Deep Mats |
4ft |
£628.00 |
£440.00 |
£260.00 8kg |
6ft |
£845.00 |
£560.00 |
£390.00 102kg |
| 8ft | £1121.00 216kg |
£729.00 80kg |
£520.00 136kg |
All prices are subject to VAT.
Professional 8ft (2x4ft) Double Depth Mounted Chain Harrows with Folding Wings
Our wider Professional 8ft (2 x 4ft) Double Depth Mounted Chain Harrows are available in 10ft, 12ft, 14ft, 16ft, 18ft and 20ft widths. These have a fixed A frame. The very largest ones, the 16ft, 18ft and 20ft wide harrows have the additional option of hydraulic folding wings.
» Mounted chain harrows
» Mounted chain harrow with folding sides
| Professional 8ft (2x4ft) Double Depth Mounted Chain Harrows with Folding Wings | |||
Width |
Frame and Folding Wings plus |
Frame and Folding Wings |
2 x 4ft Deep Mats |
10ft |
£1443.00 |
£988.00 |
£650.00 170kg |
12ft |
£1605.00 |
£1043.00 |
£780.00 204kg |
| 14ft | £1774.00 444kg |
£1094.00 206kg |
£910.00 238kg |
| 16ft | £1981.00 488kg |
£1132.00 216kg |
£1040.00 272kg |
| 18ft | £2143.00 537kg |
£1241.00 231kg |
£1170.00 306kg |
| 20ft | £2367.00 586kg |
£1350.00 246kg |
£1300.00 340kg |
All prices are subject to VAT.
Heavy duty 13mm tines on all mounted chain harrows with 3-way pulling action
13mm Heavy Duty Tines
All our chain harrows have heavy duty 13mm diameter tines with a length of 90mm. We feel anything less is not heavy enough to make an impression on the land.
Our heavy duty tines are manufactured from a 13mm diameter round bar rather than a more common and weaker 10mm / 11mm diameter bar.
We only use larger 13mm diameter tines as this results in an increase of almost 40% in the cross sectional area and adds valuable additional weight during harrowing.
The additional weight, thickness and the heavy duty strength of our 13mm tines is what maximises performance meaning that the harrowing job can be achieved quickly and efficiently saving time, fuel and also wear and tear. Thinner tines of 10mm / 11mm will not penetrate the ground as well as our heavier 13mm tines.
Our 13mm diameter tine mats are interchangeable with both our mounted chain harrows as well as our trailed harrows.
3-way Pulling Action
All our harrows also have a three way pulling action and this means you can choose the best harrowing option - passive, aggressive or upside down - to suit your ground conditions.
13mm Tine Action
Direction of Pull
← = Passive
→ = Aggressive
Direction of Pull
← = Passive
→ = Aggressive
1. With the tines facing backwards allowing 'passive' harrowing - reversing the mat gives less ground penetration and a smoother action.
2. With the chain harrow tines facing forwards, this allows 'aggressive' harrowing - vigorous, deeper ground penetration ideal for harder ground.
3. Turn the chain harrow mat upside down to allow smooth harrowing - ideal for re-seeding.
Chain Harrow Mats
4ft wide and 6ft wide chain harrows comprise of standard, single 4ft and 6ft wide, 4ft deep mats.
Mounted chain harrows with widths of 8ft - 20ft are available in multiples of 4ft and 6ft wide, 4ft deep mats. This means the chain harrow mats are extremely versatile, easy to upgrade at a later date, easier to handle and easier to attach to the mounted frame.
If you prefer a complete single mat of 8ft and over or specific multiple widths please just let us know.
E.g. A 12ft wide Semi Professional 4ft Single Depth Chain Harrow will be supplied in 3 x 4ft wide mats, if you prefer 2 x 6ft wide mats or 1 x 12ft wide mat, please indicate when ordering.
Please note that the same mats can be used on either the trailed harrows or our mounted chain harrows.
We recommend and sell only the best trailed chain harrows
Please contact us if you'd like help or advice in choosing the most suitable trailed chain harrow for your needs. Phone anytime on 01458 850 084 or email sales@chainharrows.co.uk.
